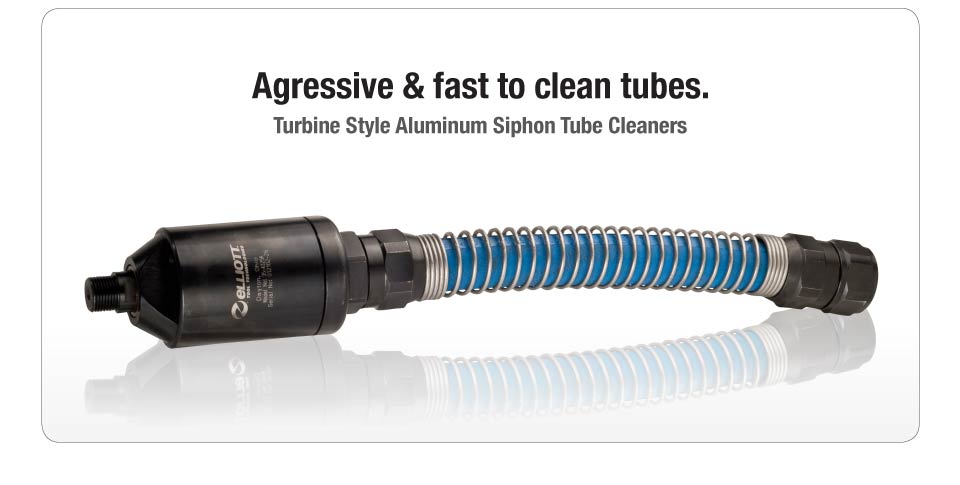

Turbine Style Aluminum Siphon Tube Cleaners
Keep your aluminum smelter siphon tubes meeting your production requirements while reducing operating cost with Elliott’s powerful siphon tube reaming motors and drills.
Features & Benefits:
- Stellited drills for lasting wear.
- Combination drills for aggressive drilling.
- Powerful motors for fast cleaning.
- Optional welded universal rivets for lasting performance.
- Engineered design that is easy to maintain.
Specifications:
1425PKG (round):
- 1” (25mm) Air Hose Supply
- 110 CFM (3.1 M3/min.) @ 80 PSI (5.5 bar).
- 3” (76.2mm) motor diameter
- Weight (motor only): 9.4 lbs./4 Kg.
- Weight (motor and head): 12.1 lbs./5.5 Kg.
35-4325PKG (oval):
- 1” (25mm) Air Hose Supply
- 64 CFM (1.8 M3/min.) @ 80 PSI (5.5 bar)
- 2-9/16” (65mm) motor diameter
- Weight (motor only): 5.61 lbs./2.5 Kg.
- Weight (motor and head): 8.31 lbs./4 Kg.
